EZsolarkits

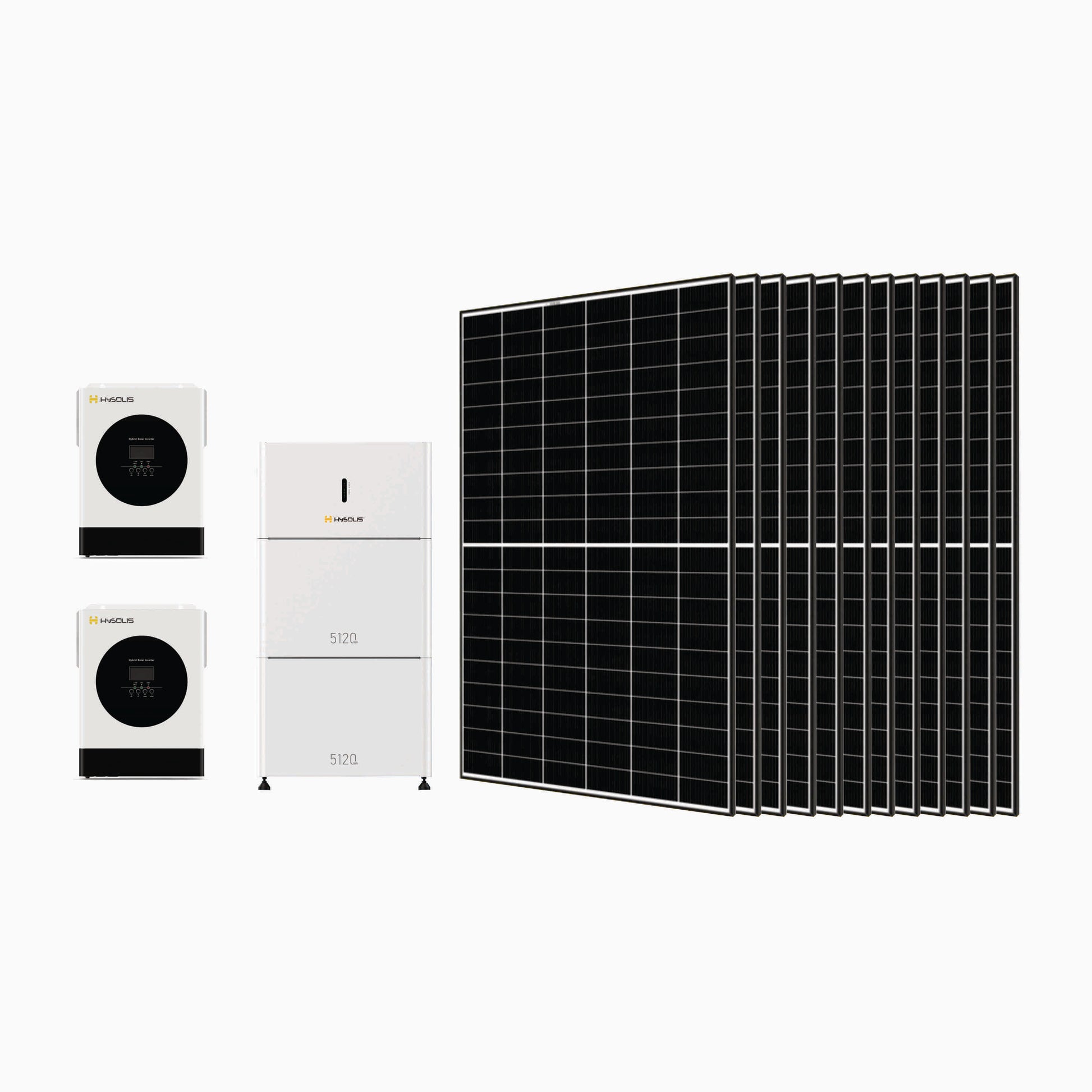

10KWh / 6,000W Off-grid Solar Power Storage System Split Phase Power Supply + Choose Your Custom Bundle Option | Complete Solar Kit

10KWh / 6,000W Off-grid Solar Power Storage System Split Phase Power Supply + Choose Your Custom Bundle Option | Complete Solar Kit

$5,599.00 USD
$7,565.00 USD $5,599.00 USD
Sale Sold out
Battery Bank
Solar Panels
System Specifications
Inverter Type High frequency pure sine wave single phase
Rated AC Output Power Continuous 6,000W Pure Sine wave 240VAC Split Phase
Surge Power 12,000W
Solar Charge Controller 2x MPPT 100A
Solar Input Voltage Range 70VDC-450VDC
Max PV Input Power 2x 5,000W
Max AC Input Power 240VAC/7,0000W
Battery Voltage 51.2V
Battery Capacity 10Kwh / 15Kwh (Lithium Iron Phosphate)
Battery Lifecycles 6,000
Battery warranty 10 years

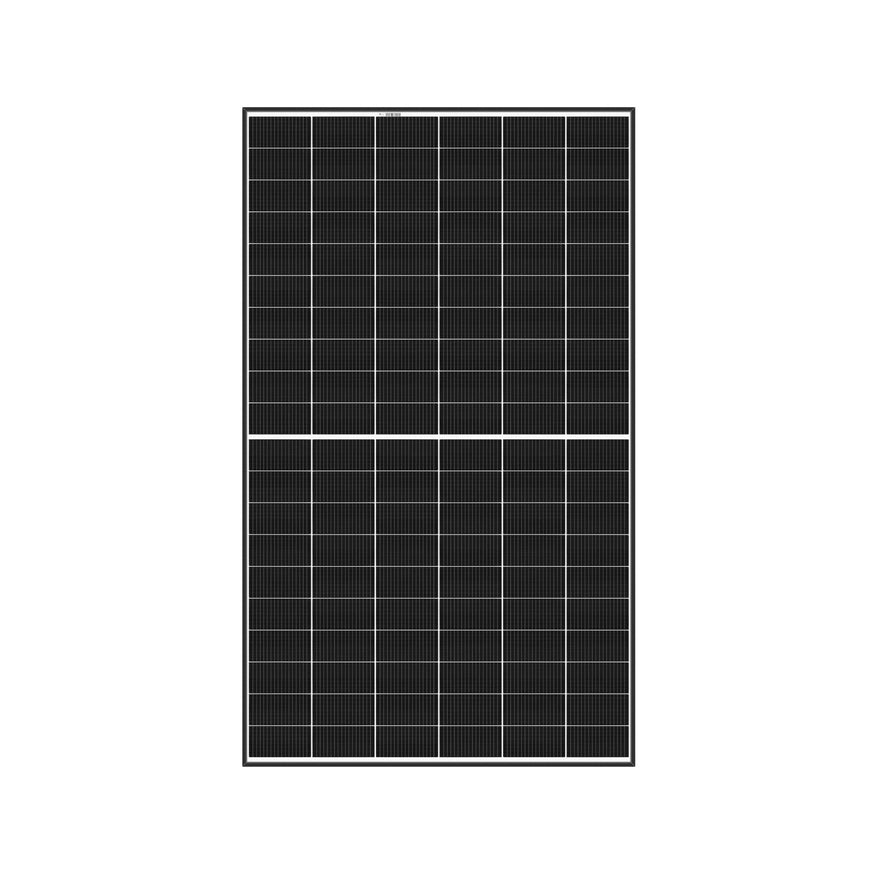

410 Watt Solar Panel Specifications
Maximum Power(Pmax) 410W
Maximum Power Voltage(Vmp) 31.2V
Maximum Power Current(Imp) 13.2A
Open Circuit Voltage(Voc) 37.3V
Short Circuit Current(Isc) 13.7A
Maximum System Voltage(Vmax) 1500VDC
Dimension 67.8 x 44.6 x 1.2 in
Weight 46.0 lbs
Warranty 25 years

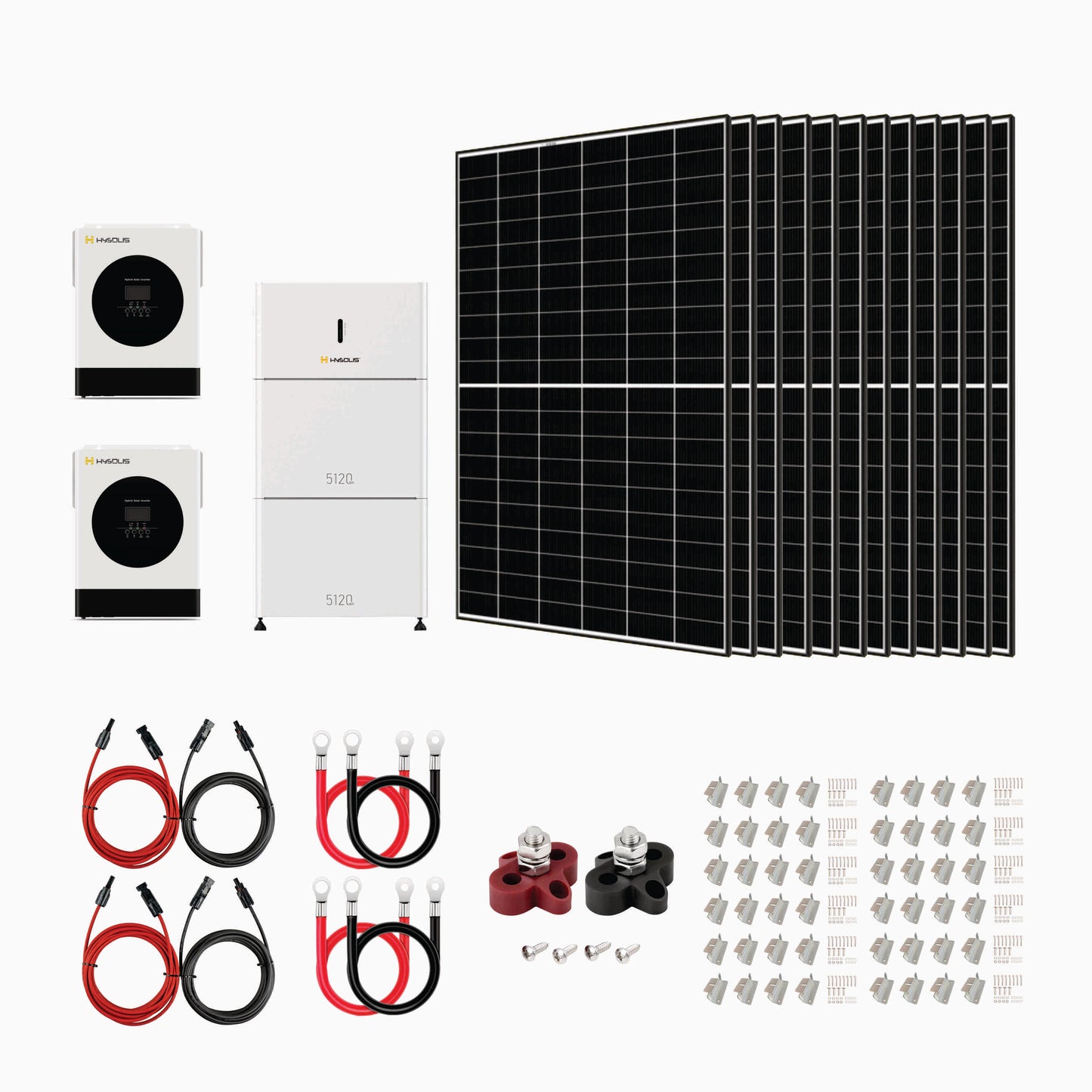

What's Included:

  • (Selected qty) 10KWh / 15KWh LFP battery packs.
  • (1) Battery control box with 120A battery breaker.
  • (2) 3KW Hybrid inverter.
  • (Selected qty) 410W Mono-crystalline Bifacial Solar Panels.
  • (Selected qty) Z-type Solar Panel Mounting Brackets.
  • (2) 40 ft. PV Extension Cable & connectors (10 AWG).
  • Battery cables & accessories.
  • Lifetime Customer Support (Via phone, live chat & email).
View full details
