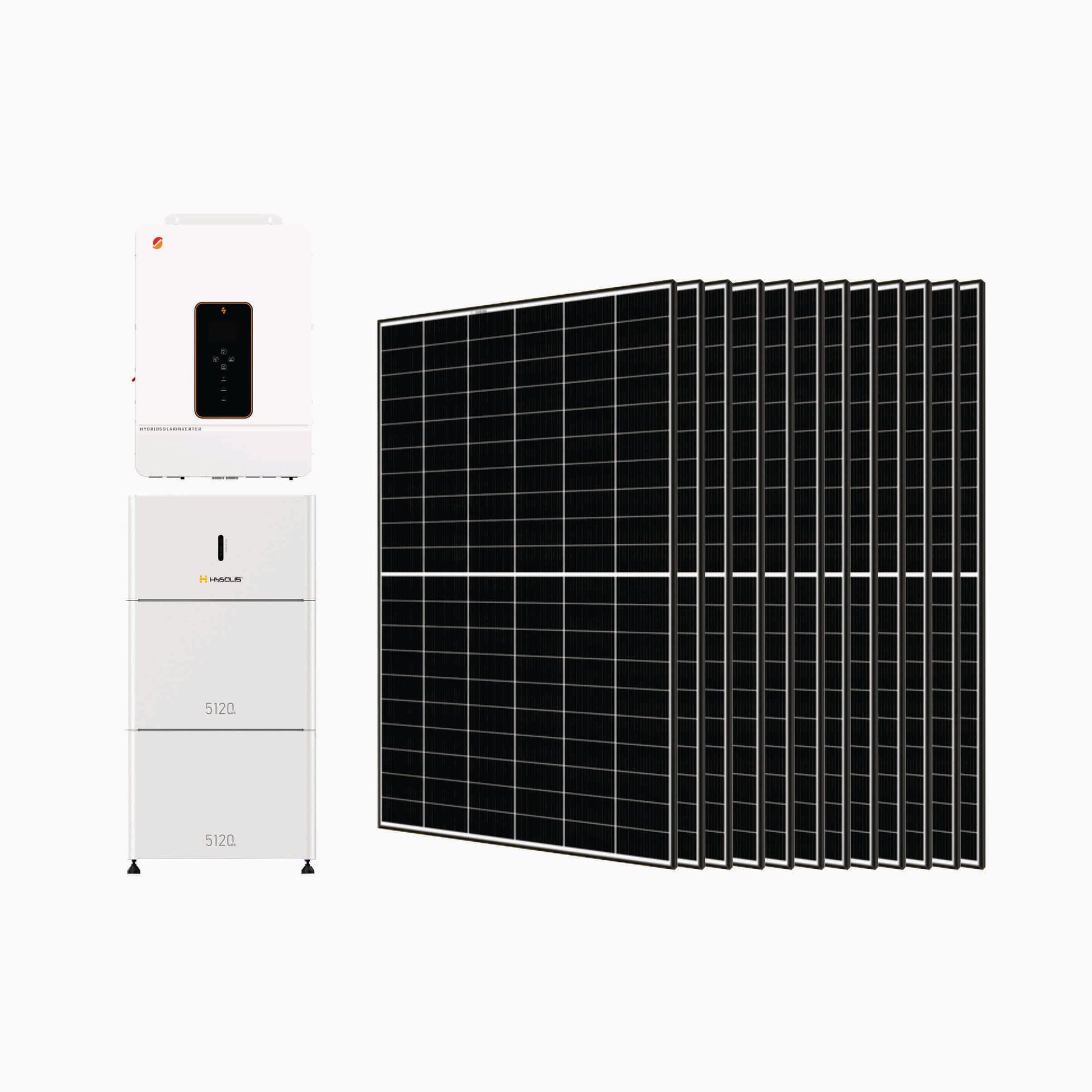

15KWh / 10,000W Off-grid Solar Power Storage System Split Phase Power Supply + Choose Your Custom Bundle Option | Complete Solar Kit
15KWh / 10,000W Off-grid Solar Power Storage System Split Phase Power Supply + Choose Your Custom Bundle Option | Complete Solar Kit
Regular price
$6,995.00 USD
Regular price
$9,900.00 USD
Sale price
$6,995.00 USD
Unit price
/
per
Couldn't load pickup availability
| System Specifications | |
|---|---|
| Inverter Type | High frequency pure sine wave single phase |
| Rated AC Output Power | Continuous 10KW Pure Sine wave 240VAC Split Phase |
| Surge Power | 20,000W |
| Solar Charge Controller | 2x MPPT 100A |
| Solar MPPT Voltage Range | 125VDC-425VDC |
| Max PV Input Power | 2x 5,500W |
| Max AC Input Power | 240VAC/14,4000W |
| Battery Voltage | 51.2V |
| Battery Capacity | 10Kwh ~ 30Kwh (Lithium Iron Phosphate) |
| Battery Lifecycles | 6,000 |
| Battery warranty | 10 years |

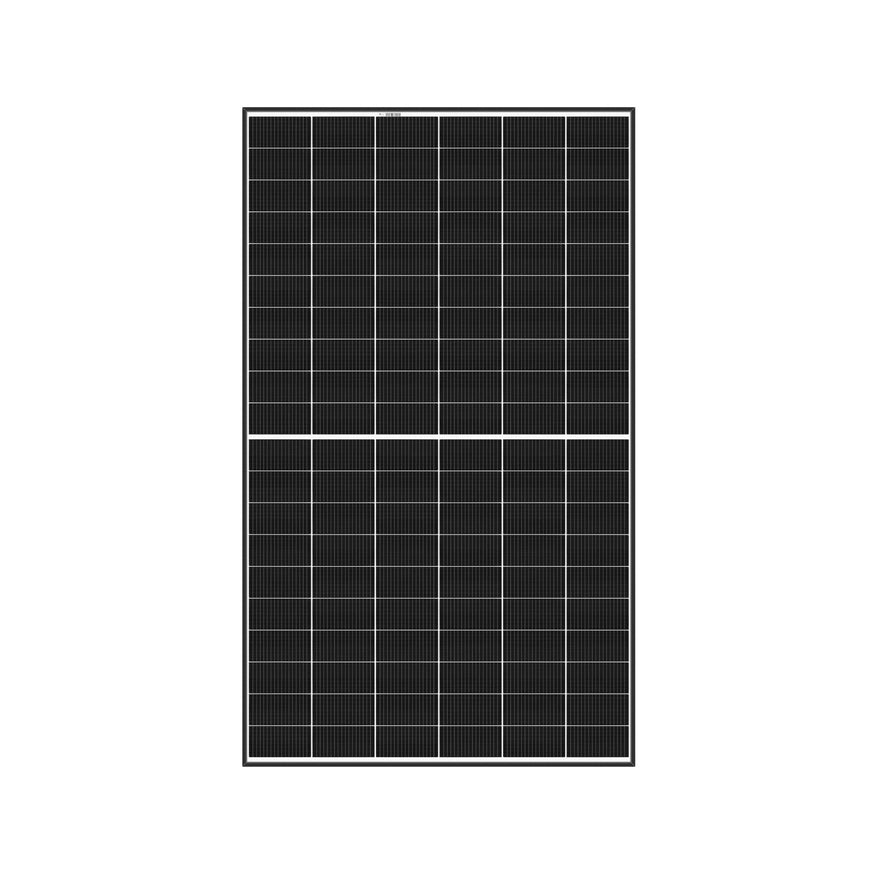

| 410 Watt Solar Panel Specifications | |
|---|---|
| Maximum Power(Pmax) | 410W |
| Maximum Power Voltage(Vmp) | 31.2V |
| Maximum Power Current(Imp) | 13.2A |
| Open Circuit Voltage(Voc) | 37.3V |
| Short Circuit Current(Isc) | 13.7A |
| Maximum System Voltage(Vmax) | 1500VDC |
| Dimension | 67.8 x 44.6 x 1.2 in |
| Weight | 46.0 lbs |
| Warranty | 25 years |

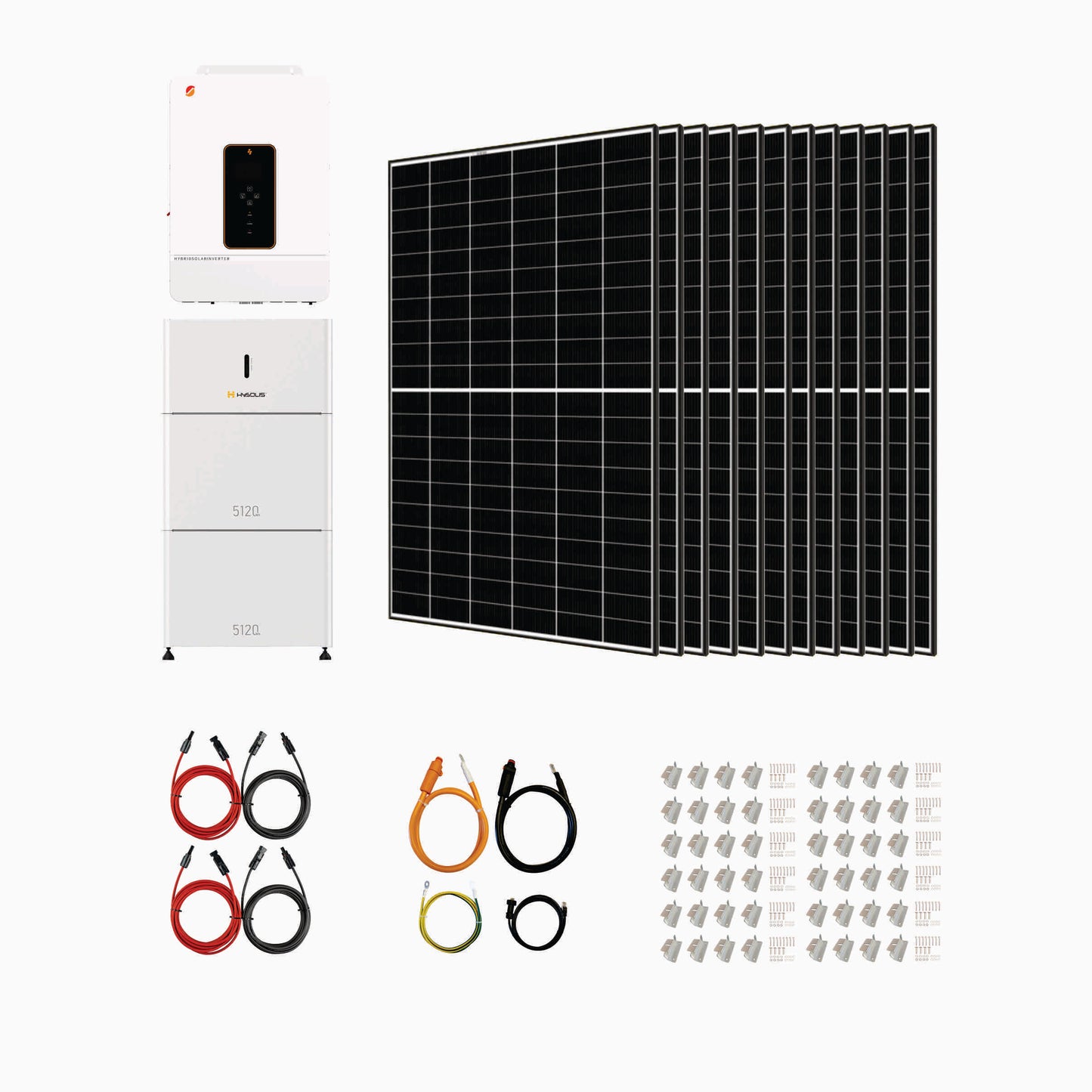

What's Included:

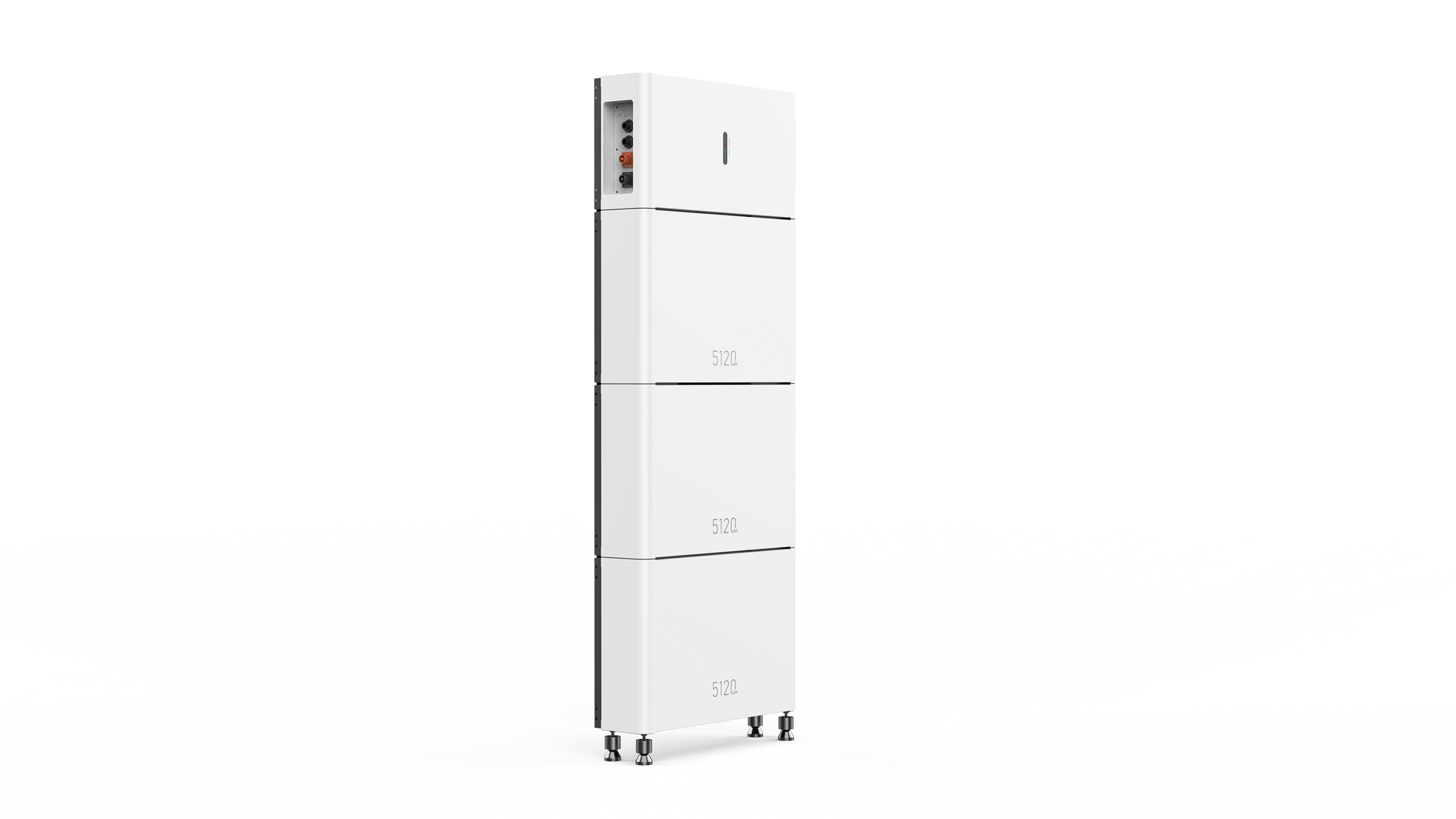

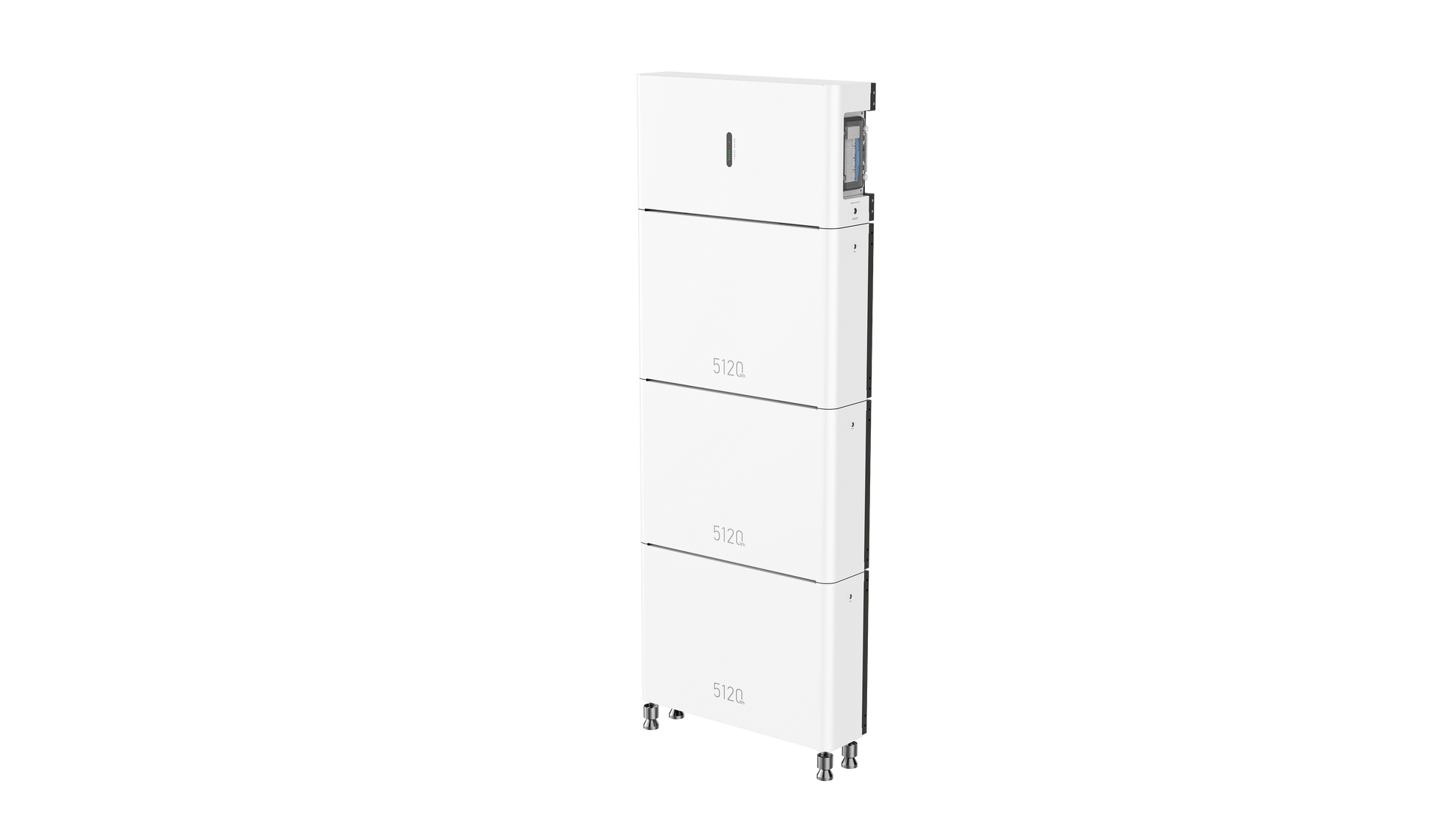

- (Selected qty) 10KWh / 15KWh LFP battery packs.
- (1) Battery control box with 120A battery breaker.
- (1) 10KW Hybrid inverter.
- (Selected qty) 410W Mono-crystalline Bifacial Solar Panels.
- (Selected qty) Z-type Solar Panel Mounting Brackets.
- (2) 40 ft. PV Extension Cable & connectors (10 AWG).
- Battery cables & accessories.
- Lifetime Customer Support (Via phone, live chat & email).
