5KWh / 3,000W Off-grid Solar Power Storage System + Choose Your Custom Bundle Option | Complete Solar Kit

$2,999.00 USD

~~$4,300.00 USD~~ $2,999.00 USD

Sale Sold out

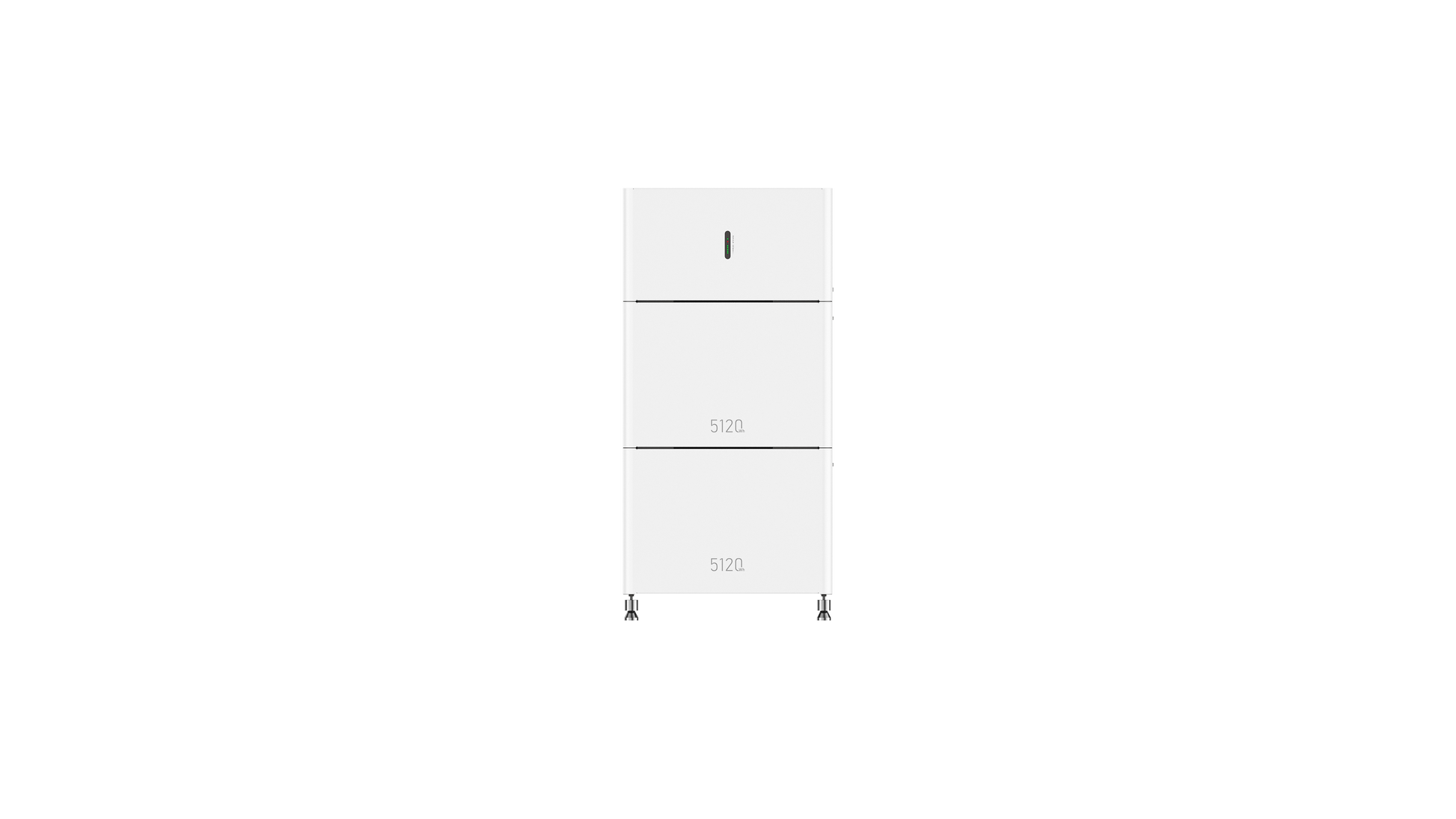

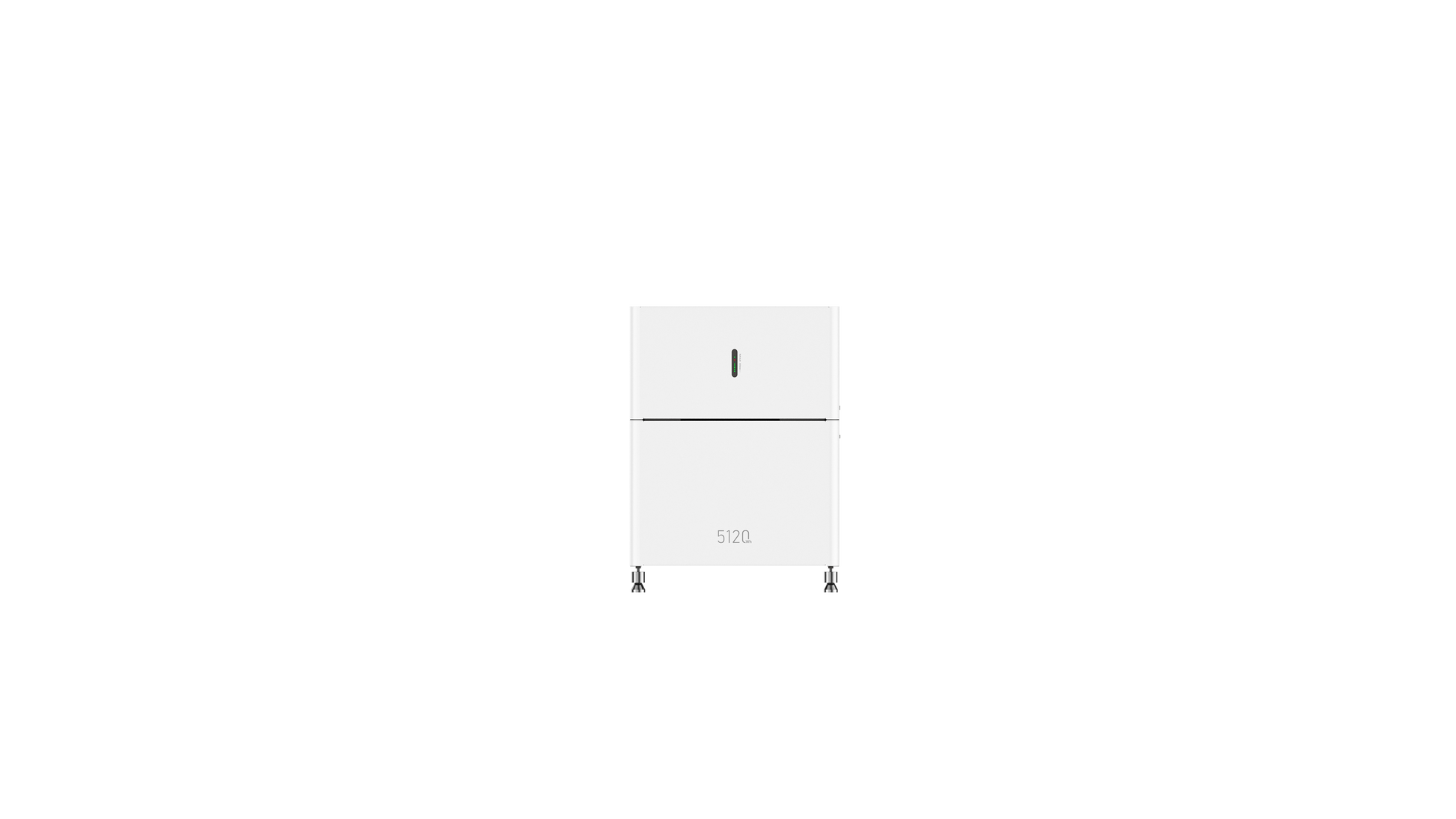

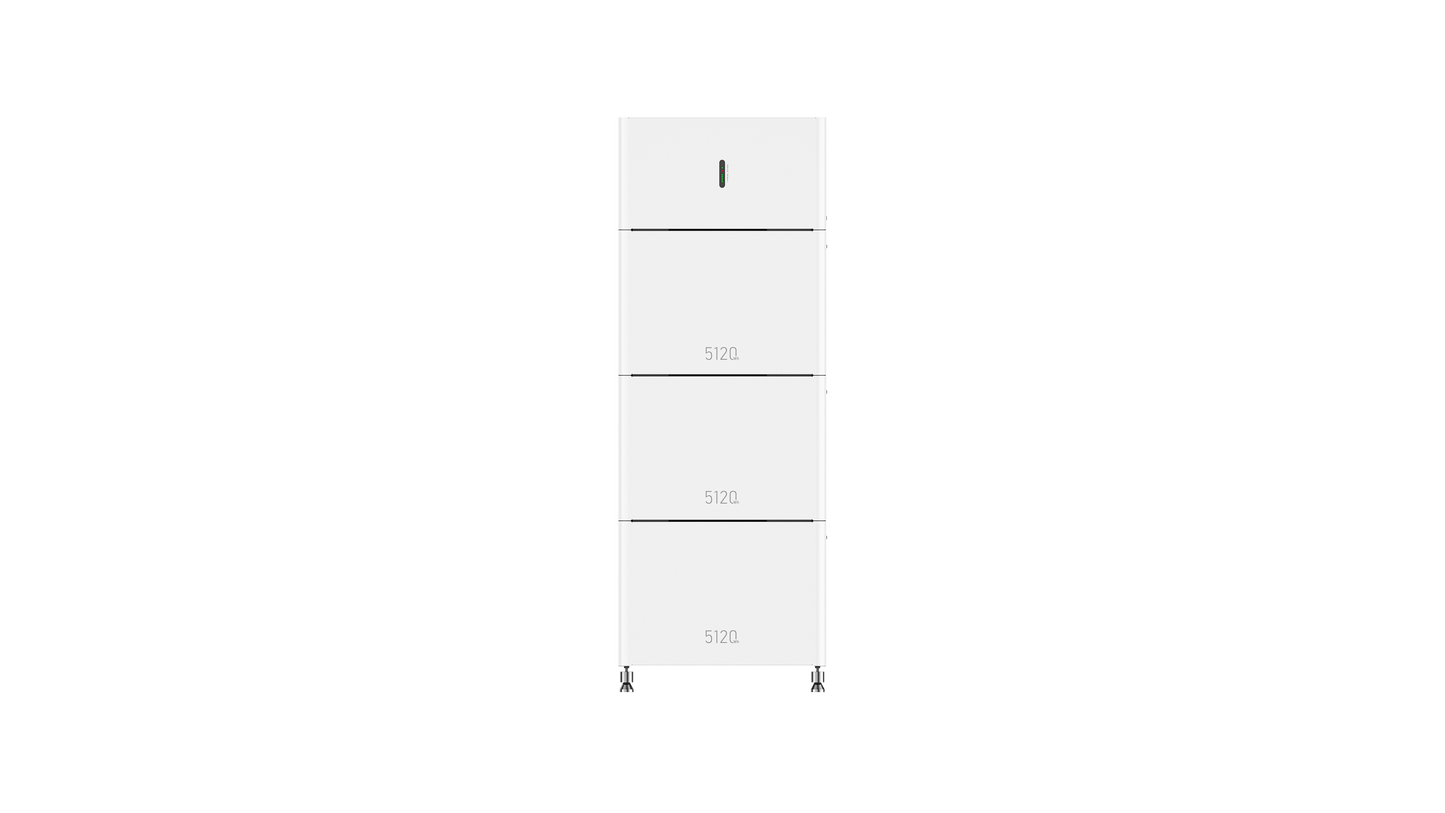

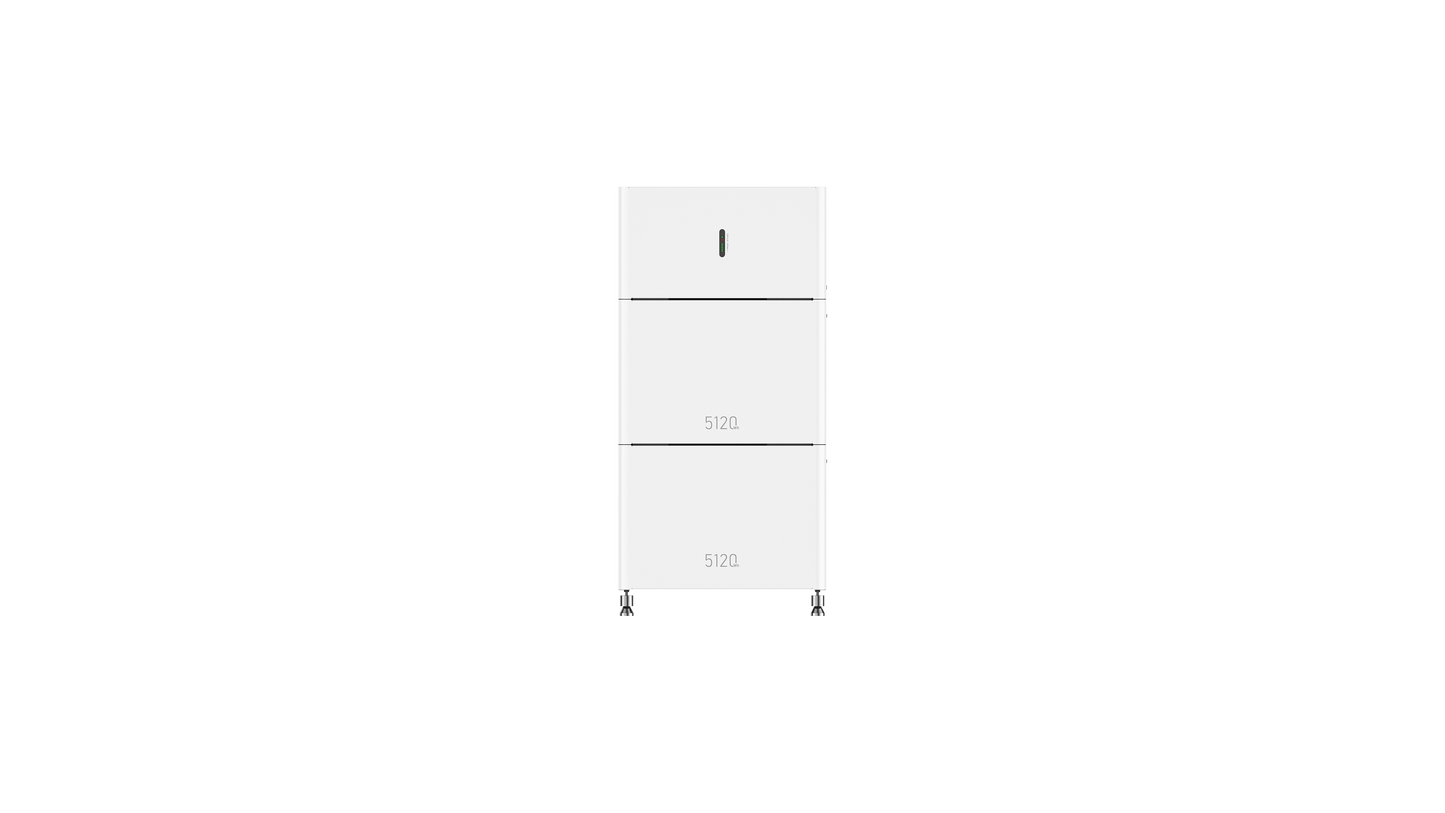

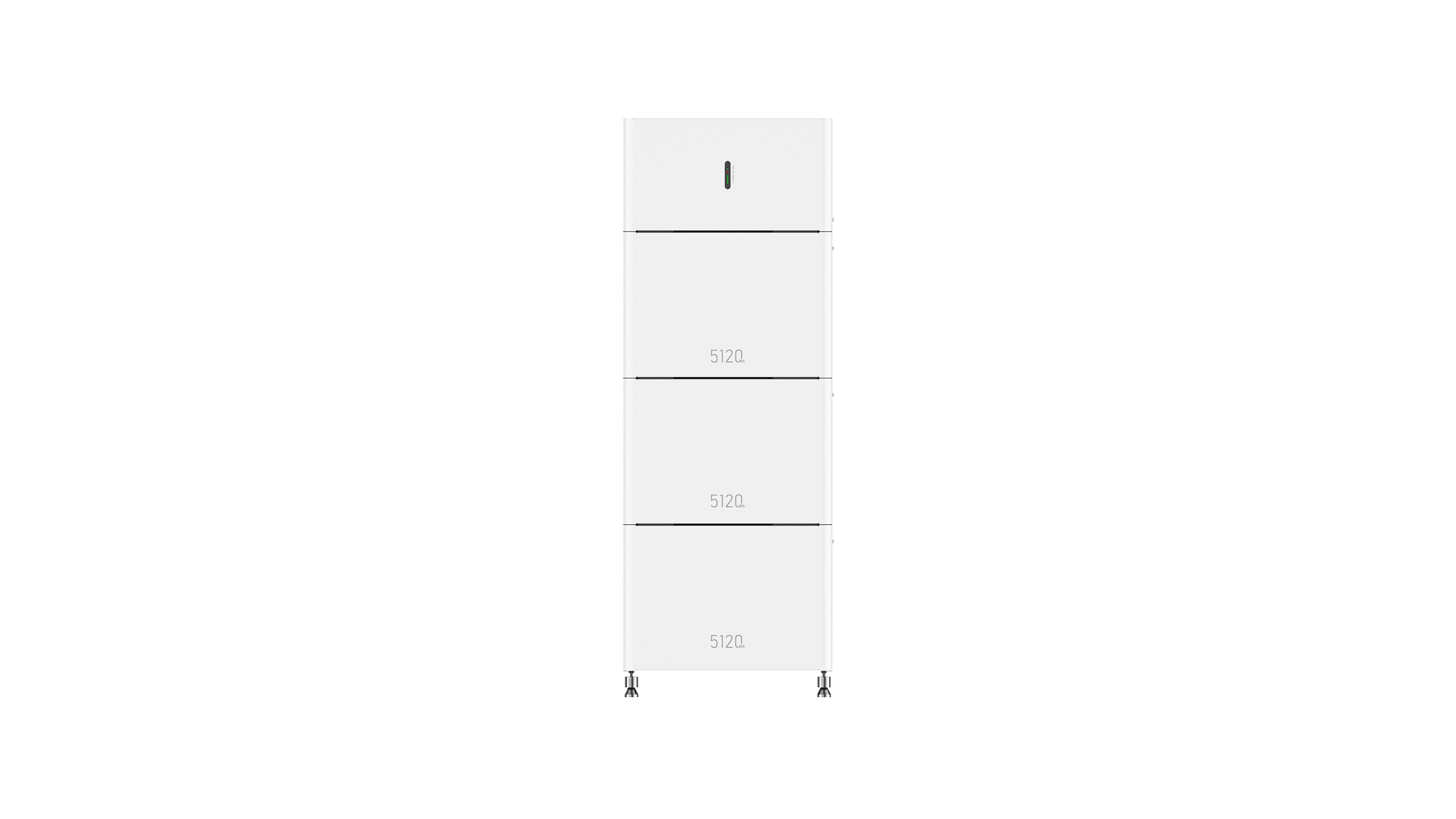

Battery Bank 5.12 KWh 10.24 KWh 15.36 Kwh

Solar Panels (5) 410W Bifacial solar panels (6) 410W Bifacial solar panels (8) 410W Bifacial solar panels (10) 410W Bifacial solar panels (12) 410W Bifacial solar panels

Quantity

System Specifications
Inverter Type	High frequency pure sine wave single phase
Rated AC Output Power	Continuous 3,000W Pure Sine wave 120VAC/ 60Hz
Surge Power	6,000W
Solar Charge Controller	MPPT 100A
Solar Input Voltage Range	70VDC-450VDC
Max PV Input Power	5,000W
Max AC Input Power	120VAC/3,500W
Battery Voltage	51.2V
Battery Capacity	5KWh ~ 15KWh watt-hours (Lithium Iron Phosphate)
Battery Lifecycles	6,000
Battery warranty	10 years

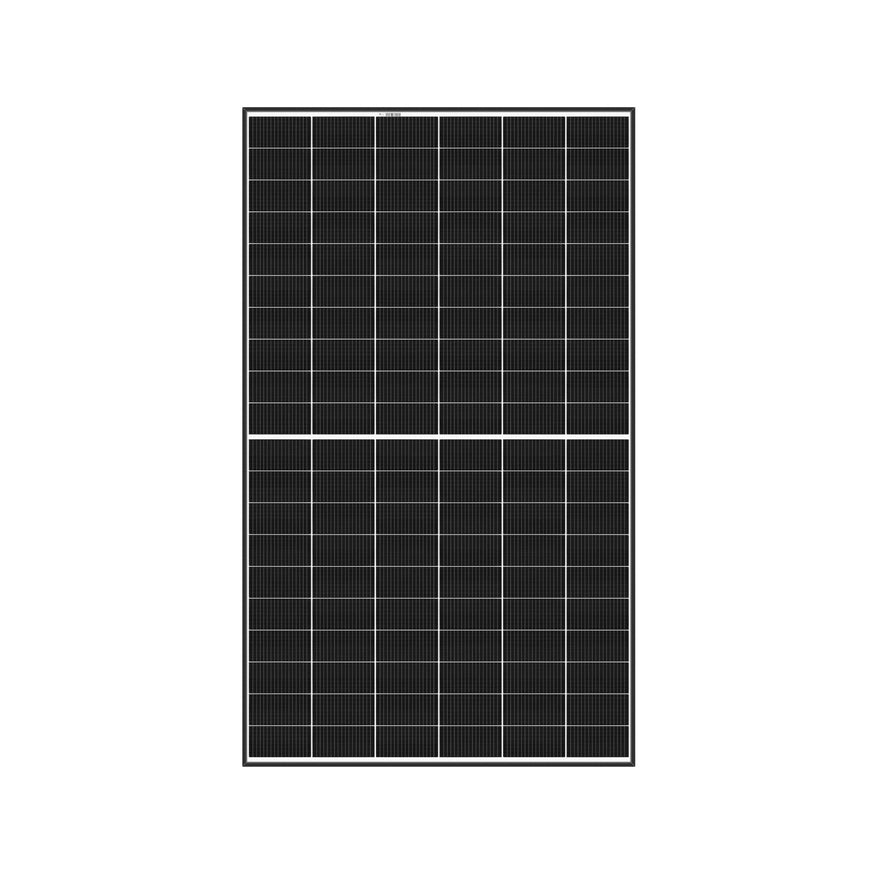

410 Watt Solar Panel Specifications
Maximum Power(Pmax)	410W
Maximum Power Voltage(Vmp)	31.2V
Maximum Power Current(Imp)	13.2A
Open Circuit Voltage(Voc)	37.3V
Short Circuit Current(Isc)	13.7A
Maximum System Voltage(Vmax)	1500VDC
Dimension	67.8 x 44.6 x 1.2 in
Weight	46.0 lbs
Warranty	25 years

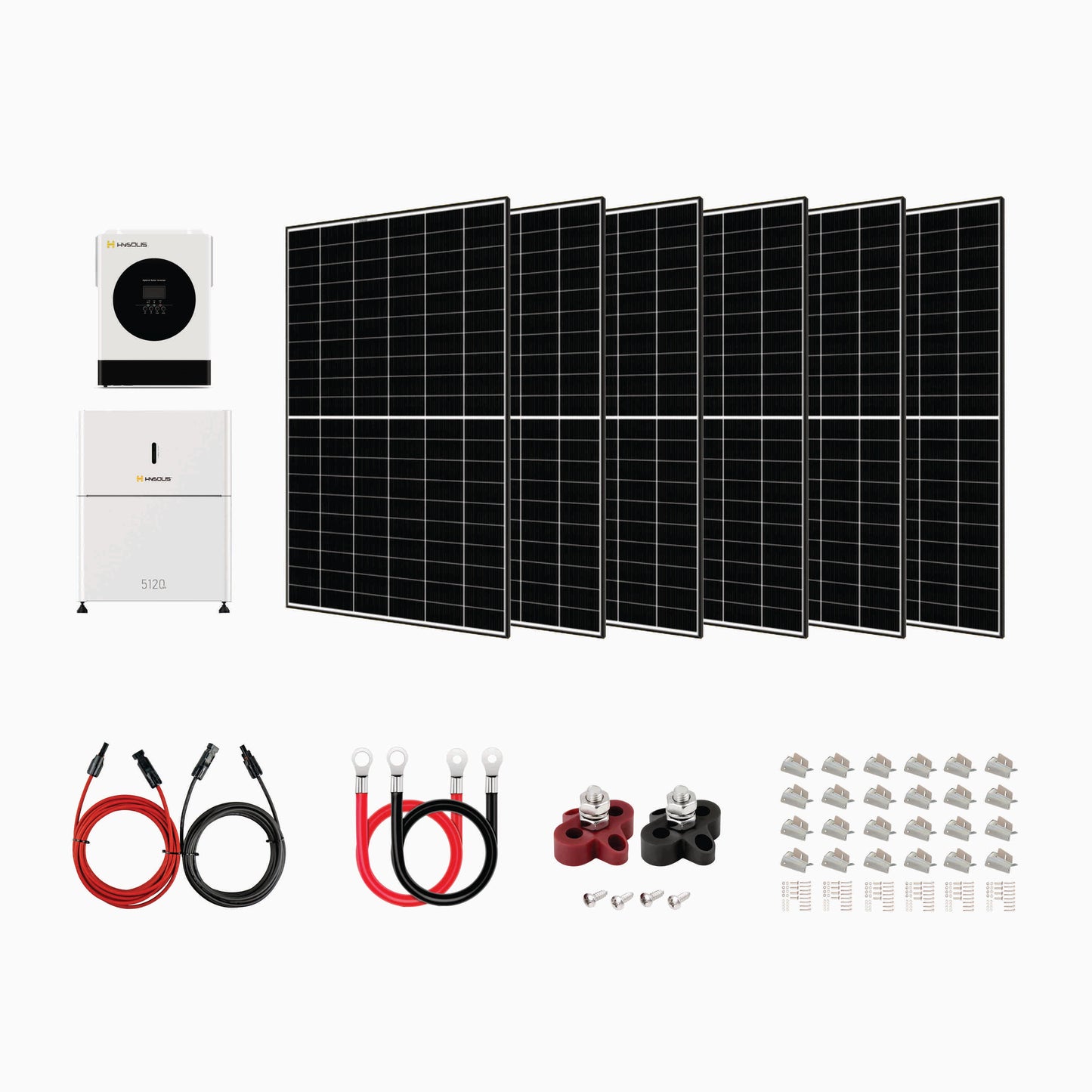

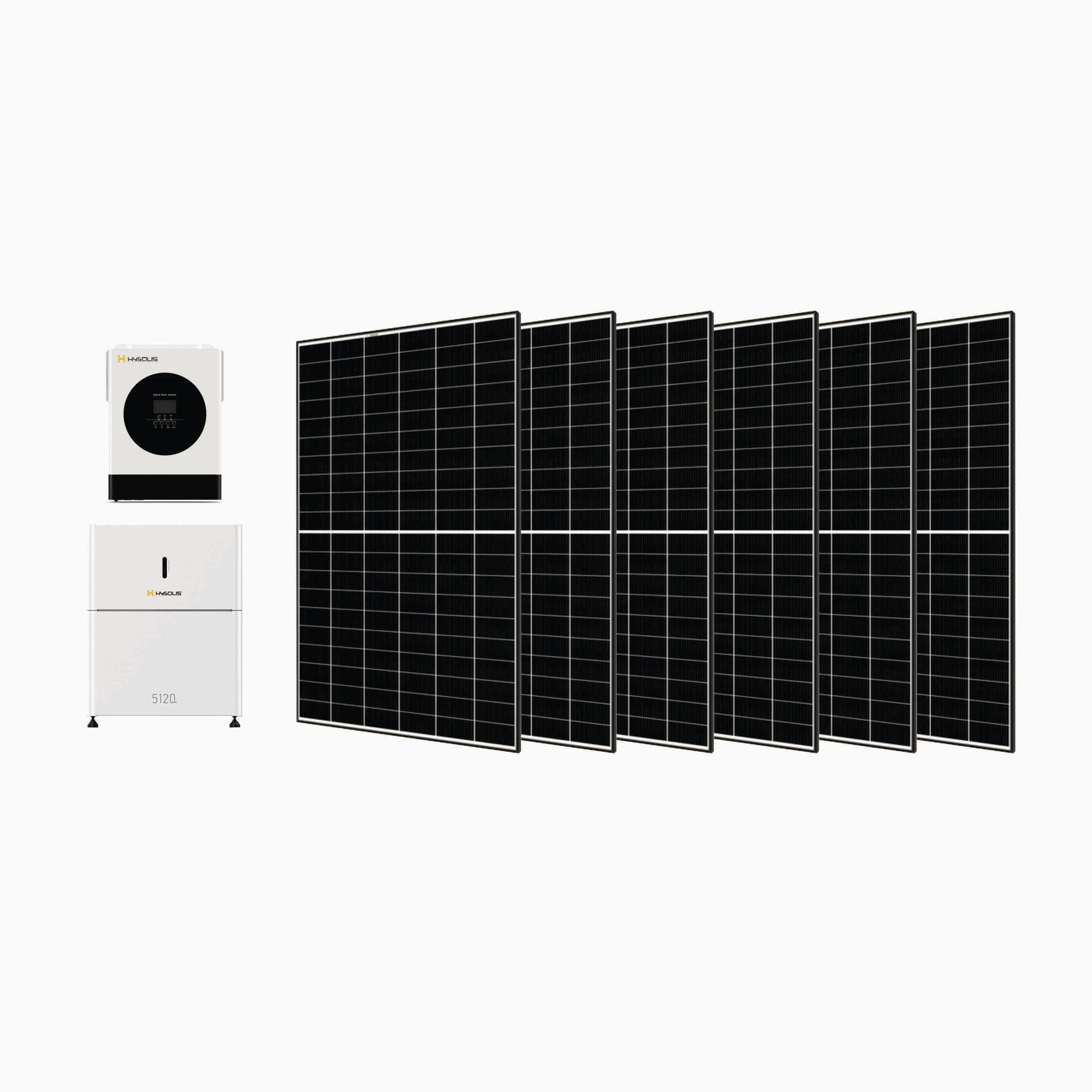

What's Included:

(Selected qty) 5KWh~15KWh LFP battery packs.

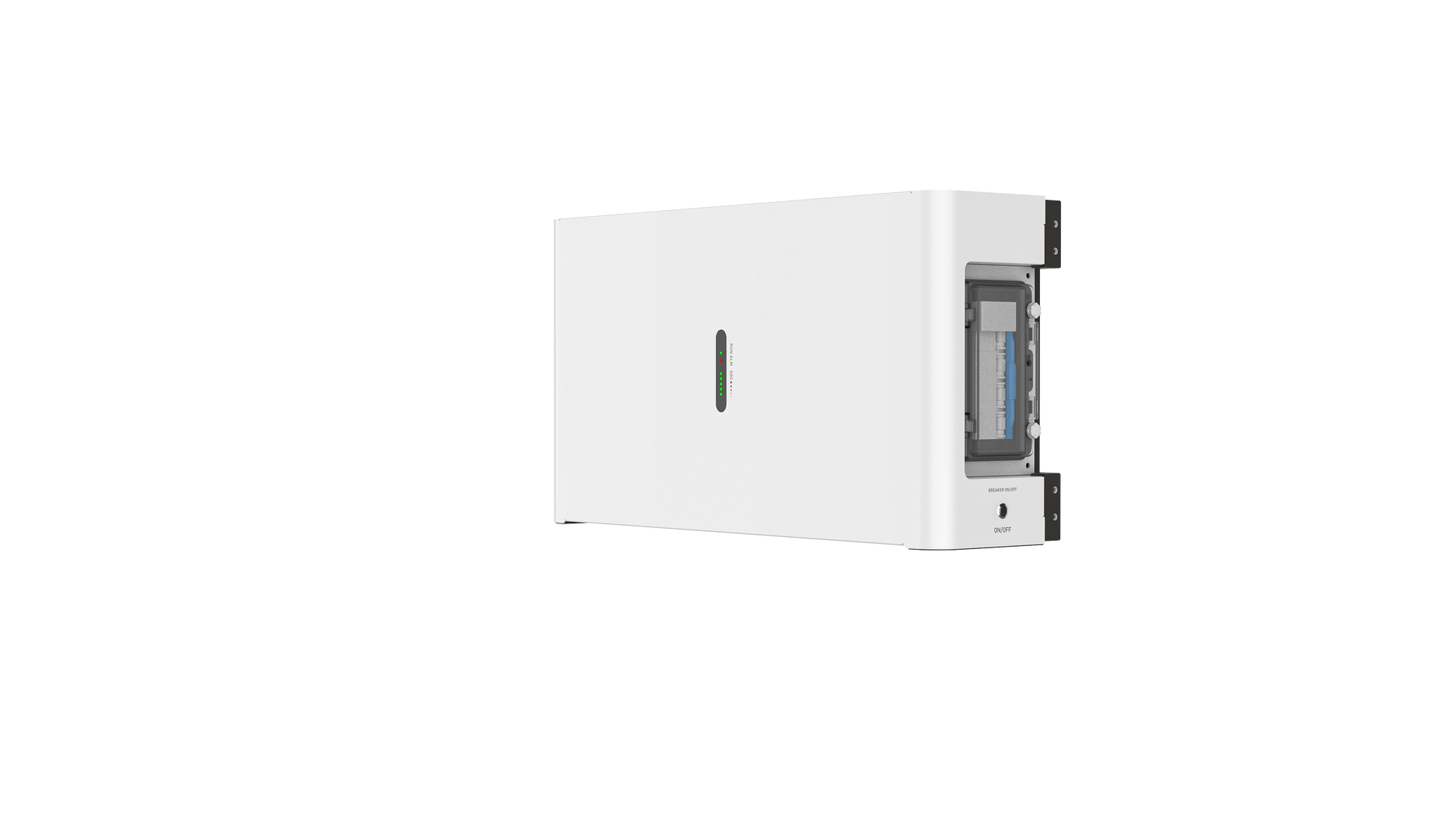

(1) Battery control box with 120A battery breaker.
(1) 3KW Hybrid inverter.
(Selected qty) 410W Mono-crystalline Bifacial Solar Panels.
(Selected qty) Z-type Solar Panel Mounting Brackets.
(1) 40 ft. PV Extension Cable & connectors (10 AWG).
Battery cables & accessories.
Lifetime Customer Support (Via phone, live chat & email).
