Grid-Tie Solar Power Kits | 800W plug and play Solar Grid-tie Micro Inverter kits | Plug and save your bill

Specifications:

Solar Grid-tie Micro Inverter

Model: EZ1-900VA

Material: Casting Aluminum alloy

Maximum Power: 900VA

PV Input: 2 x independent MPPT modues

PV Input voltage range: 26V~60V

Max. PV Input current: 2 x 18A

Nominal AC output voltage: 120V / 105.6V~132V

Nominal AC output current: 7.5A

Nominal AC output frequency: 60Hz

Output power factor rating: >0.99

Communications: Built-in WiFi and bluetooth

Operating ambient temperature: -40℉ ～ +149℉

Cooling method: Natural Convection

Isolation Design: High frequency transformers, galvanically isolated

Enclosure environment rating: Type 6 (Waterproof)

Compliances: UL 1741, CSA 22.2 No. 107.1 -16,  FCC

Dimension:  11.1"x9.2"x1.6"

Weight: 9.3 lbs

Warranty: 10 years.

Solar Panels

Model: HS200-MHG

Maximum Power(Pmax)    200W
Maximum Power Voltage(Vmp)    18.51V
Maximum Power Current(Imp)    10.89A
Open Circuit Voltage(Voc)    21.91V
Short Circuit Current(Isc)    11.63A
Nominal Operating Cell Temp(NOCT)    113 +/-35° F
Temperature Range    -40 ~ +185°F
Weight    23.6 lbs
Dimensions    58.3 x 26.6 x 1.2 in

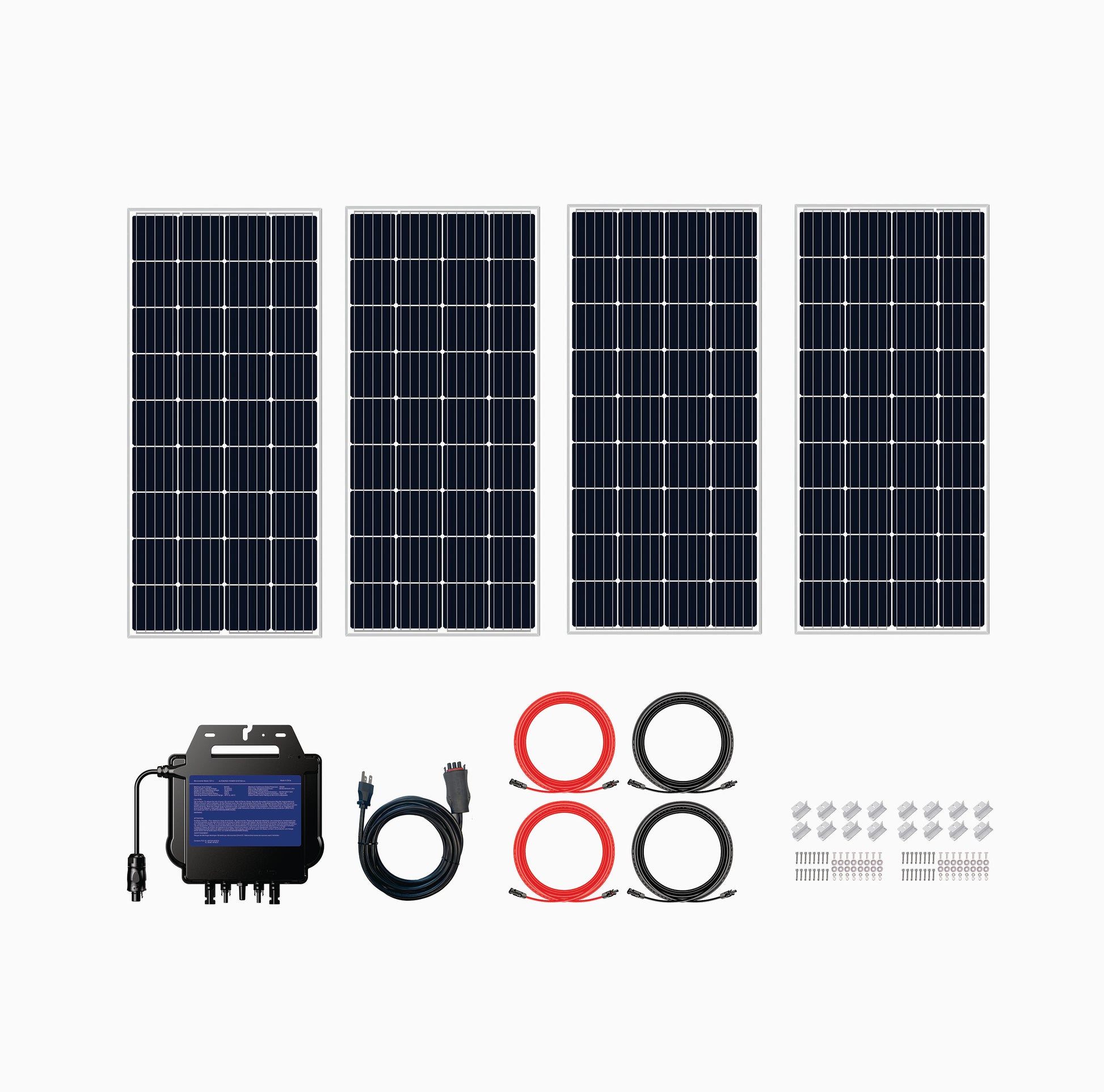

What's included
(4) 200W solar panels
(1) EZ1-900VA grid-tie micro-inverter
(1) 16ft AC power cord
(2) Pair of 20ft Black + Red PV cables
(4) Solar panel mounting brackets
