EZsolarkits
One Pair Black + Red Solar Panel Extension Cable PV Wire with connectors 10AWG
One Pair Black + Red Solar Panel Extension Cable PV Wire with connectors 10AWG
Regular price
$28.50 USD
Regular price
Sale price
$28.50 USD
Unit price
/
per
Couldn't load pickup availability

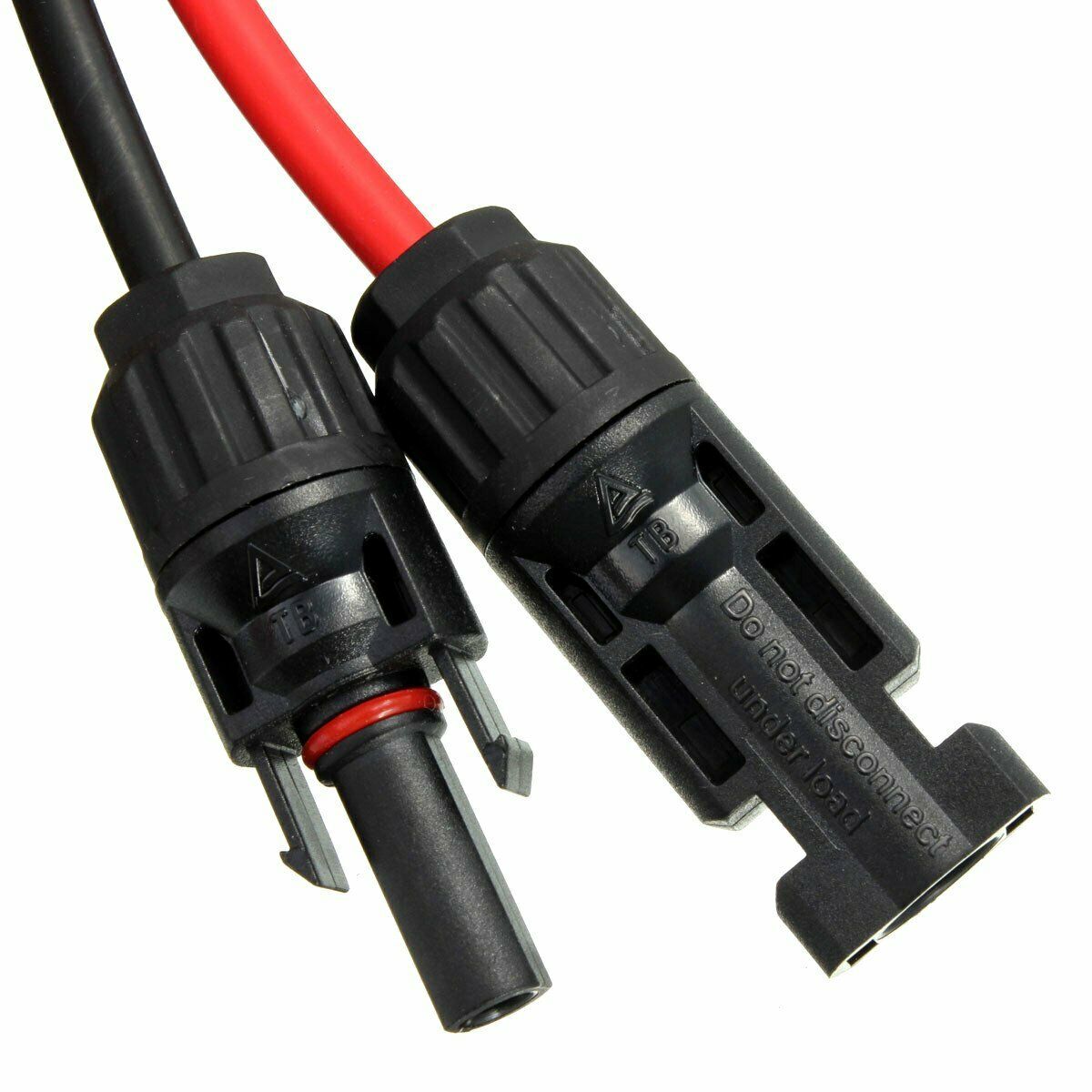

1 Pair Black + Red 10AWG Solar Panel Extension Cable with male & female Connectors
*High quality special for PV wiring.
*Insulation Jacket, Chemically crosslinked polyethylene, Oxidation resistance.
*Anti-UV, flame retardant, high temperature resistance, low resistance, conductive stability
*Resistant to pressure, folding and flexibility
*Resistant to pressure, folding and flexibility
What is included:

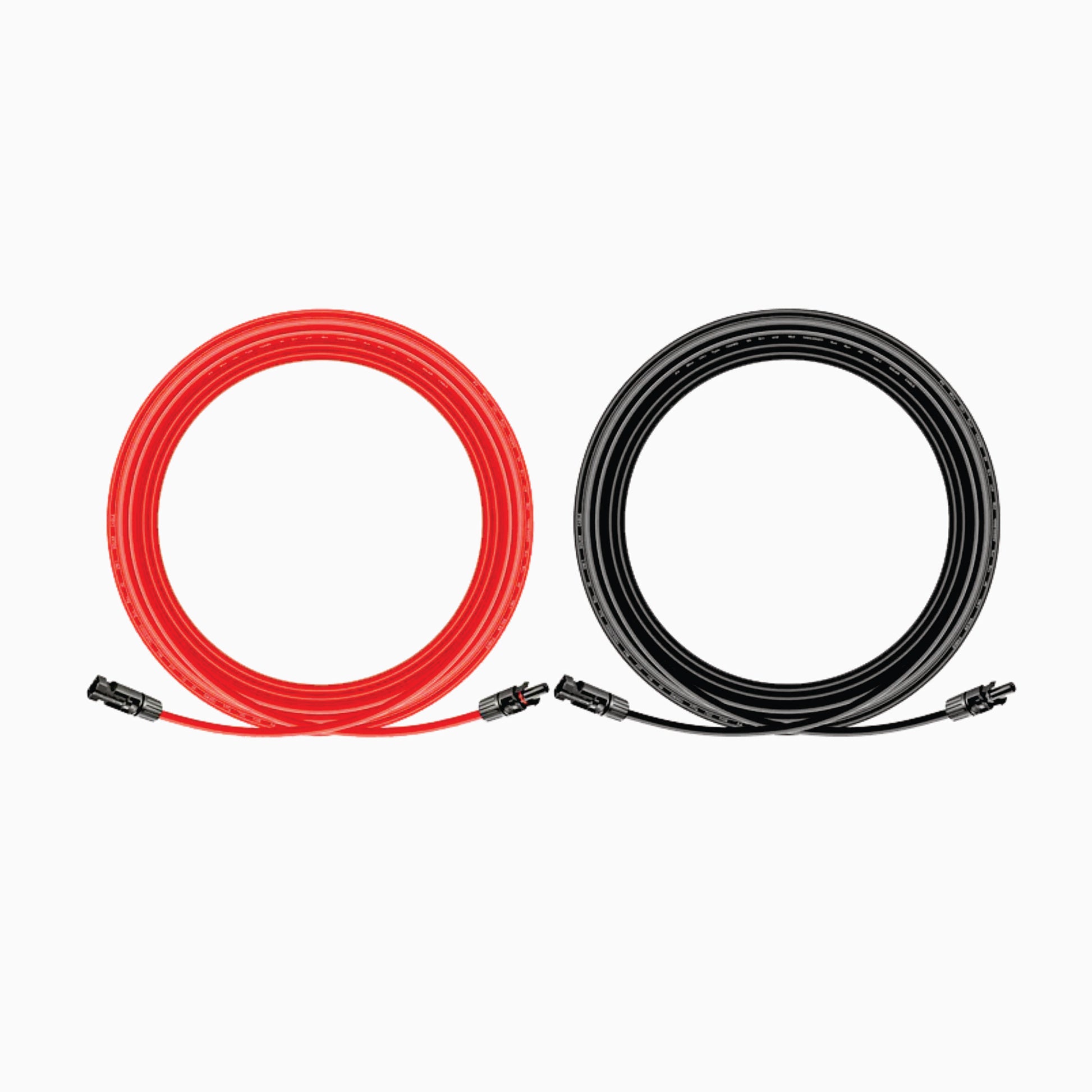

One piece 20'/30'/40' black solar cable + one piece 20'/30'/40' red cable solar cable

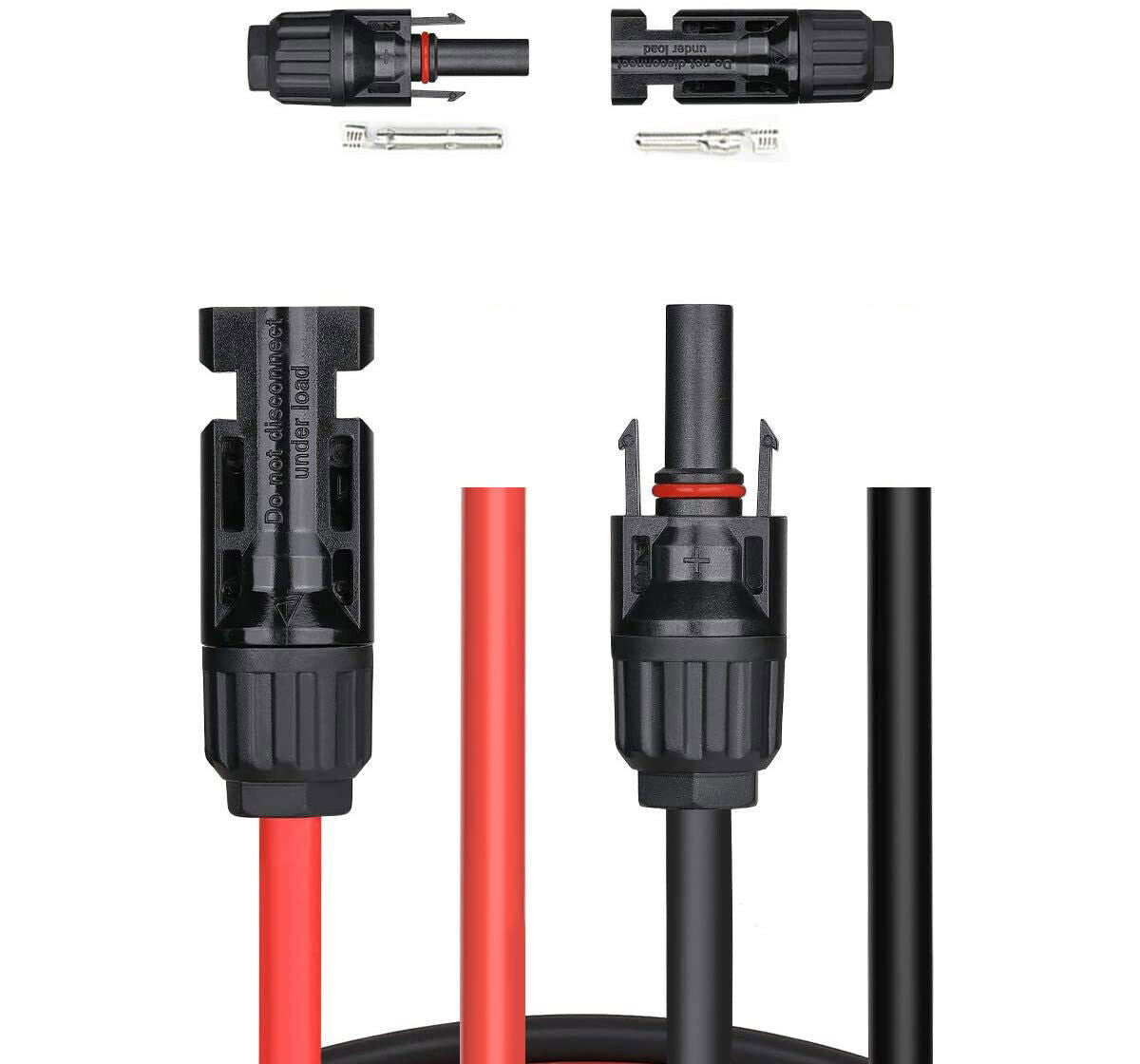

One or both ends terminated with Solar Connectors.
10 AWG Solar Cable Technical Specifications:
- Wire Thickness: 10 AWG (4mm²)
- Insulation Thickness: 0.075 inches
- Nominal Outer Diameter: 0.28 inches
- Approximate Net Weight : 17.54 ft/lbs
- Ampacity 90ºC Wet/Dry: 40A
- Conductors: Fully annealed stranded bare copper per ASTM B3. Class B Stranding
- Insulation Jacket: Chemically crosslinked polyethylene
